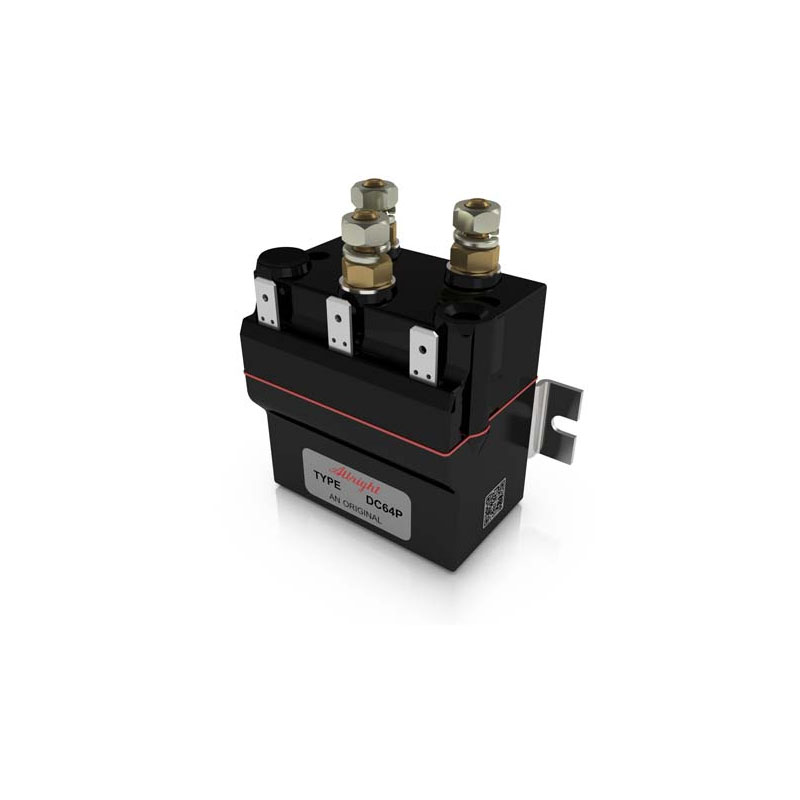

DC64P Low Voltage Stud

DC64P

The DC64P has been designed for direct current loads, such as motors used on small winches.  The DC64P is a monoblock construction, resulting in a compact design which is compatible with modern electronic control systems.  Devised for both interrupted and uninterrupted loads, this contactor is suitable for switching Resistive, Capacitive and Inductive loads.

The DC64P has double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have exent conductivity.  The ā€˜Pā€™ type configuration offers greater environmentally protected switches, compliant to IP66.  The DC64P has M6 main stud terminals and coil connections are by means of 6.3mm spades.
